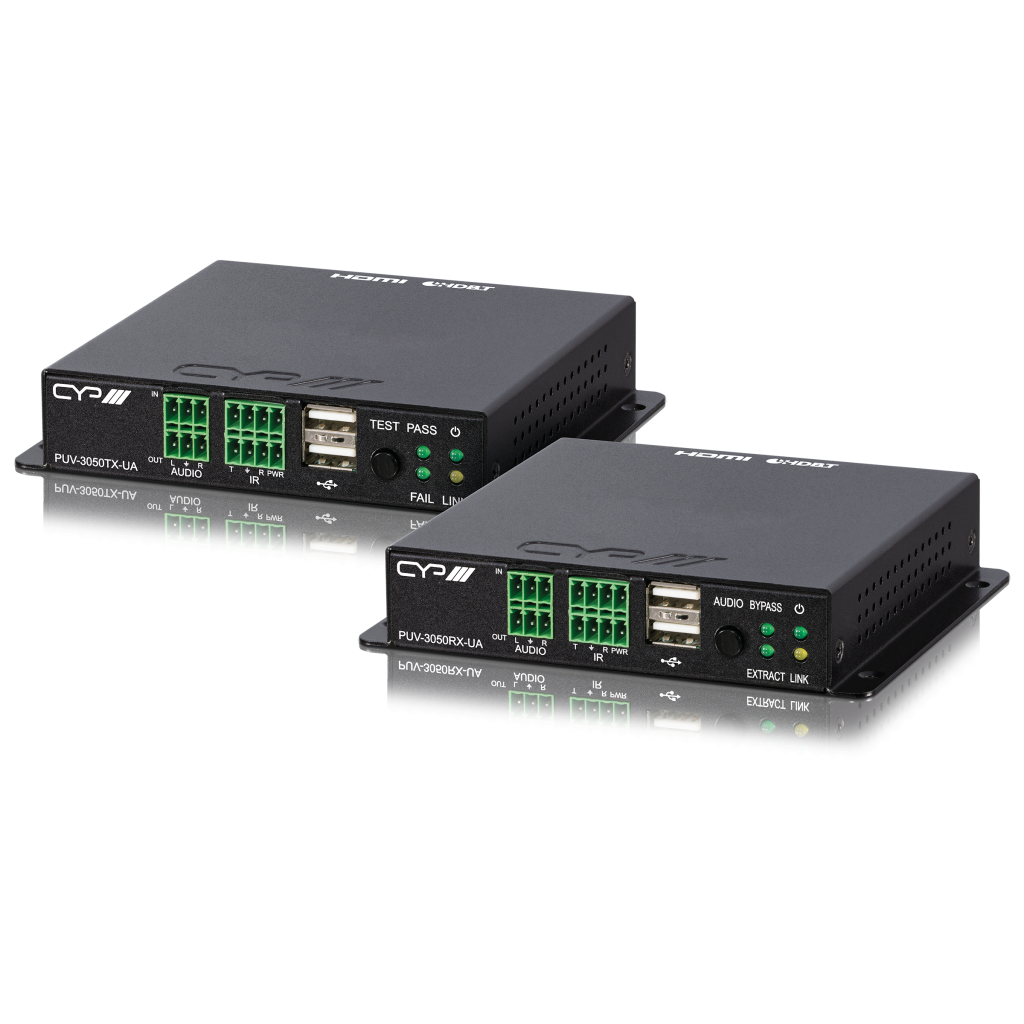

PUV-3050UA-KIT – HDBaseT3 Full 4K HDMI KIT with USB, PoH, Audio Pathway & HDMI bypass

Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output HDBaseT feature support: HD Video and Audio, Bi-directional analogue audio, and control (bidirectional USB/IR/RS-232 pass-through) USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port Supports providing PoH power from Transmitter to Receiver in same HDBaseT port Analogue audio I/O pathway across the HDBaseT link Local HDMI output (on TX) Local analogue audio output (from analogue line in, on TX) Audio output is selectable (on RX) between the bypass & extraction   Inputs 1x HDMI (TX) Uncompressed AV and Data [1x HDMI]1x Analogue (TX) Stereo (L/R) Audio Input [1x Phoenix (3 pin)]2x USB Pathway (TX) Propriety Data [1x USB Type A]2x Service Ports Propriety Data [1x USB Micro] 1x HDMI local input (RX) Uncompressed AV and Data [1x HDMI] 1x HDBaseT 3 (RX) HDMI & Propriety Data [1x RJ45]1x Analogue (RX) Stereo (L/R) Audio Input [1x Phoenix (3 pin)] Outputs 1x HDMI local bypass (TX) Uncompressed AV and Data [1x HDMI]1x HDBaseT 3 (TX) HDMI & Propriety Data [1x RJ45]1x Analogue (TX) Stereo (L/R) Audio Output [1x Phoenix (3 pin)]1x HDMI (RX) Uncompressed AV and Data [1x HDMI]1x Analogue (RX) Stereo (L/R) Audio Output [1x Phoenix (3 pin)] 2x USB pathway (RX) Propriety Data [1x USB Type A] POE PSU PoH PSU 24V/2.7A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 800g Gross Weight 2.06kg Product Stock Category Core Product
