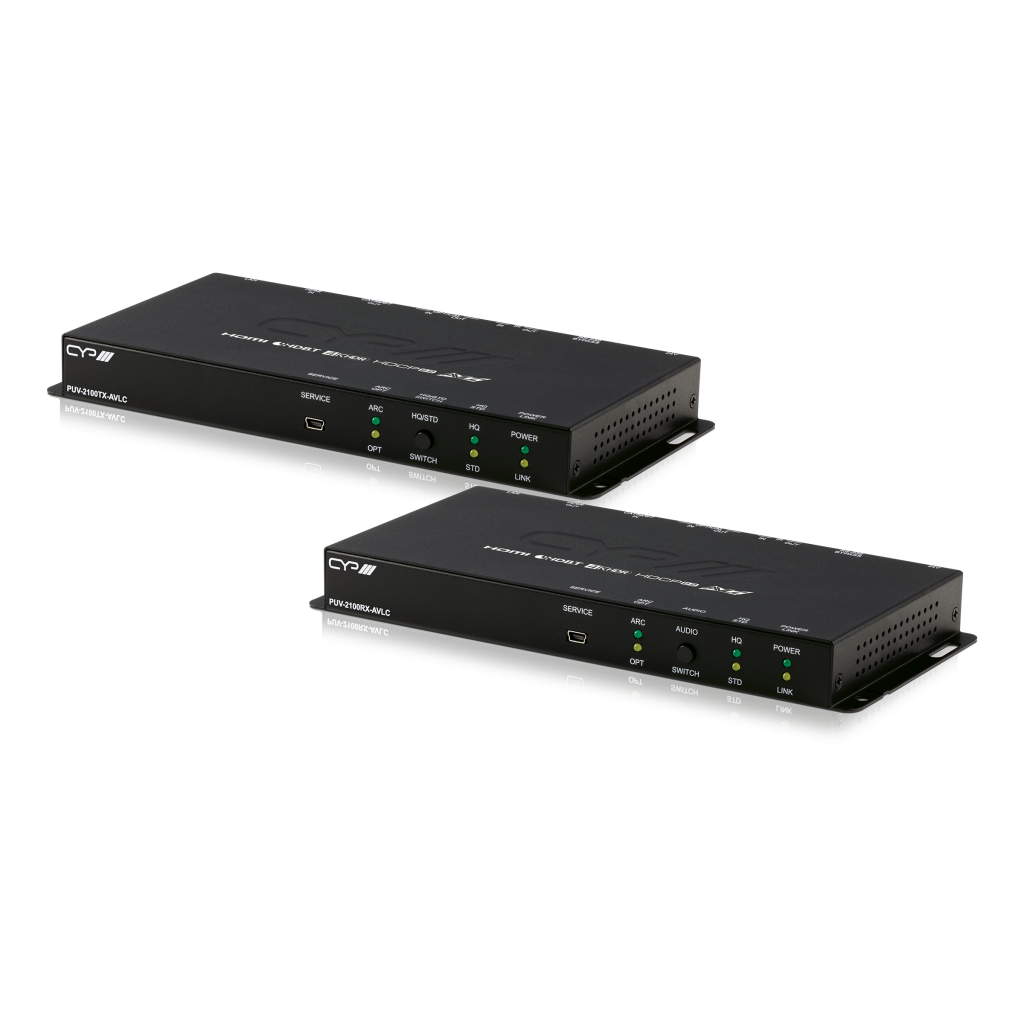

PUV-2100-AVLC-KIT – HDBaseT2 Full 4K AVLC Series Kit with LAN, PoH & Audio/ARC Pathway

HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Supports Deep Color input and output up to 12-bit Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output Supports CEC bypass HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7 HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH (PSE), bi-directional optical audio and Control (bi-directional IR/RS-232 pass-through) Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual quality The AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources) Bi-directional optical audio extension support Supports HDMI DDC bus clock stretching for improved source compatibility Performs TMDS re-clocking and signal re-generation for improved signal integrity Supports standard 48V PoH from Transmitter to Receiver (compatible Receivers only) TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 9pin Dsub [1x Bypass RS-232 Data]1x RJ45 [1x LAN Serving]1x USB 3 Type B [1x Service Port Power & Data] Outputs 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 24V/2.7A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 660g       RX Inputs 1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 9pin Dsub [1x Bypass RS-232 Data]1x RJ45 [1x LAN Serving]1x USB 3 Type B [1x Service Port Power & Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / ARC Output (Optical) / Dolby Digital Plus]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] POE PSU PoH Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 660g Gross Weight 2.7kg Product Stock Category Core Product
