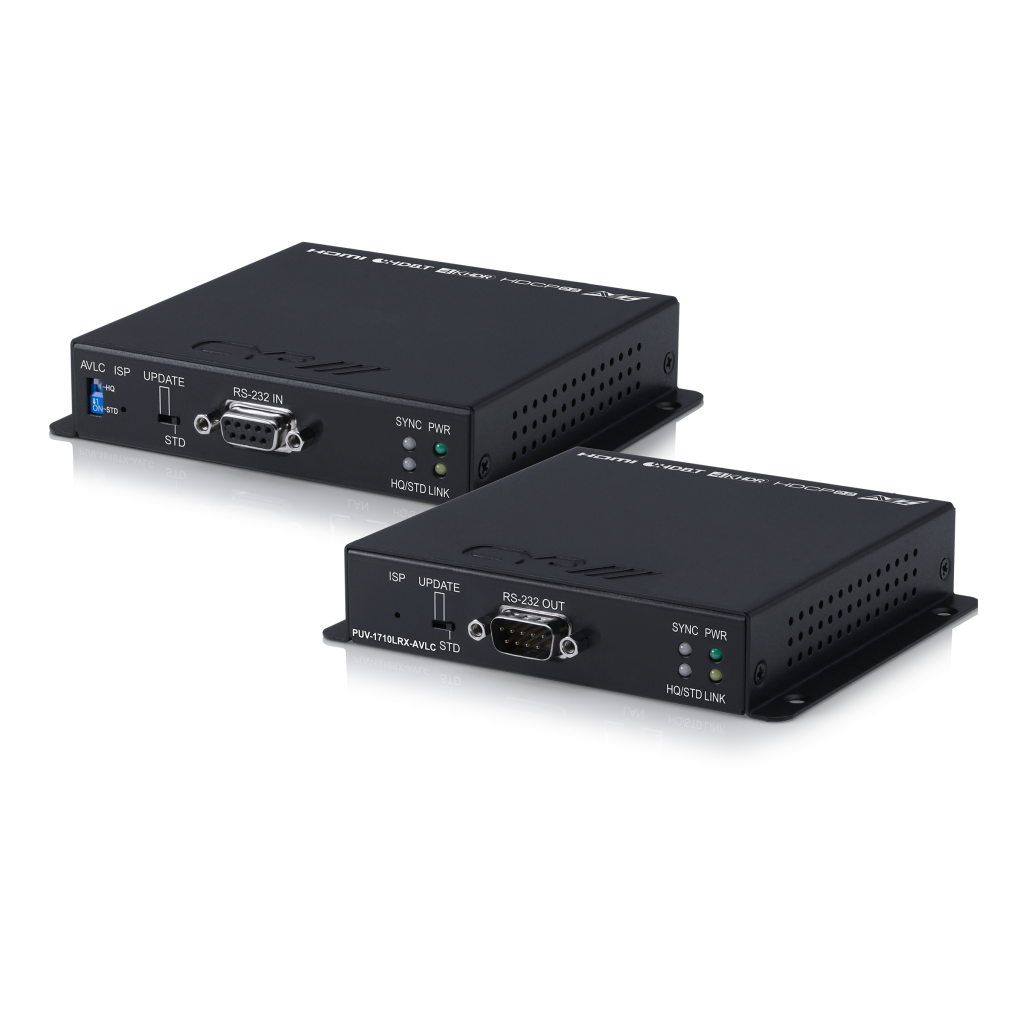

PUV-1710L-AVLC-KIT – HDBaseT1 LITE Full 4K AVLC Series Transmitter & Receiver Kit with PoH

Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output AVLC (Adaptive Visually Lossless Compression) AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) Supports Deep Colour input and output up to 12-bit Supports CEC Bypass 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports 3D signals TX   Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU  48V/0.83A Dimensions  128mm [W] x 25mm [H] x 108mm [D]  Net Weight  380g       RX   Inputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU PoH Dimensions  128mm [W] x 25mm [H] x 108mm [D]  Net Weight  380g Gross Weight  1.84kg Product Stock Category Core Product
