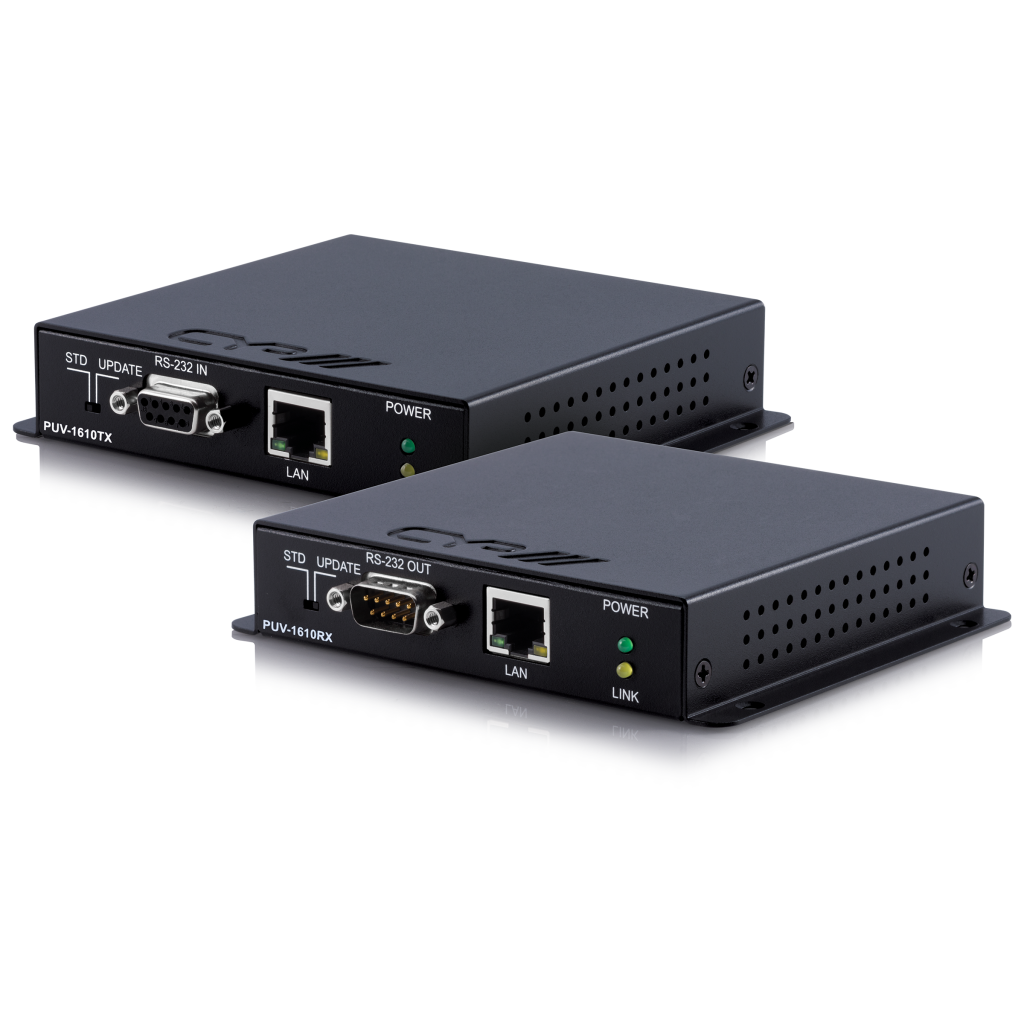

PUV-1610-KIT – Standard HDBaseT1 KIT for the Reverse Power PUV-1600 Series

$34.55 $41.81
Supports uncompressed video/audio up to 10.2Gbps HDCP2.2 Compliant Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7 Audio support up to 7.1CH & Dolby TrueHD, DTS-HD 5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232) PoH received from the mains powered RX Inputs 1x HDMI [1x TX - HDMI Uncompressed AV and Data]1x 9pin Dsub [1x TX - RS-232 Data]1x 3.5mm Stereo mini-jack [1x TX - Infra Red Receiver]1x RJ45 [1x RX - HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x RX - Infra Red Emitter]1x RJ45 [1x RX - Ethernet I/O IP] Outputs 1x RJ45 [1x TX - HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x TX - Infra Red Emitter]1x RJ45 [1x TX - Ethernet I/O IP]1x HDMI [1x RX - HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RX - RS-232 Data]1x 3.5mm Stereo mini-jack [1x RX - Infra Red Receiver] POE PSU PoH PSU 48V/0.83A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 660g Gross Weight 1.7kg Product Stock Category Core Product
