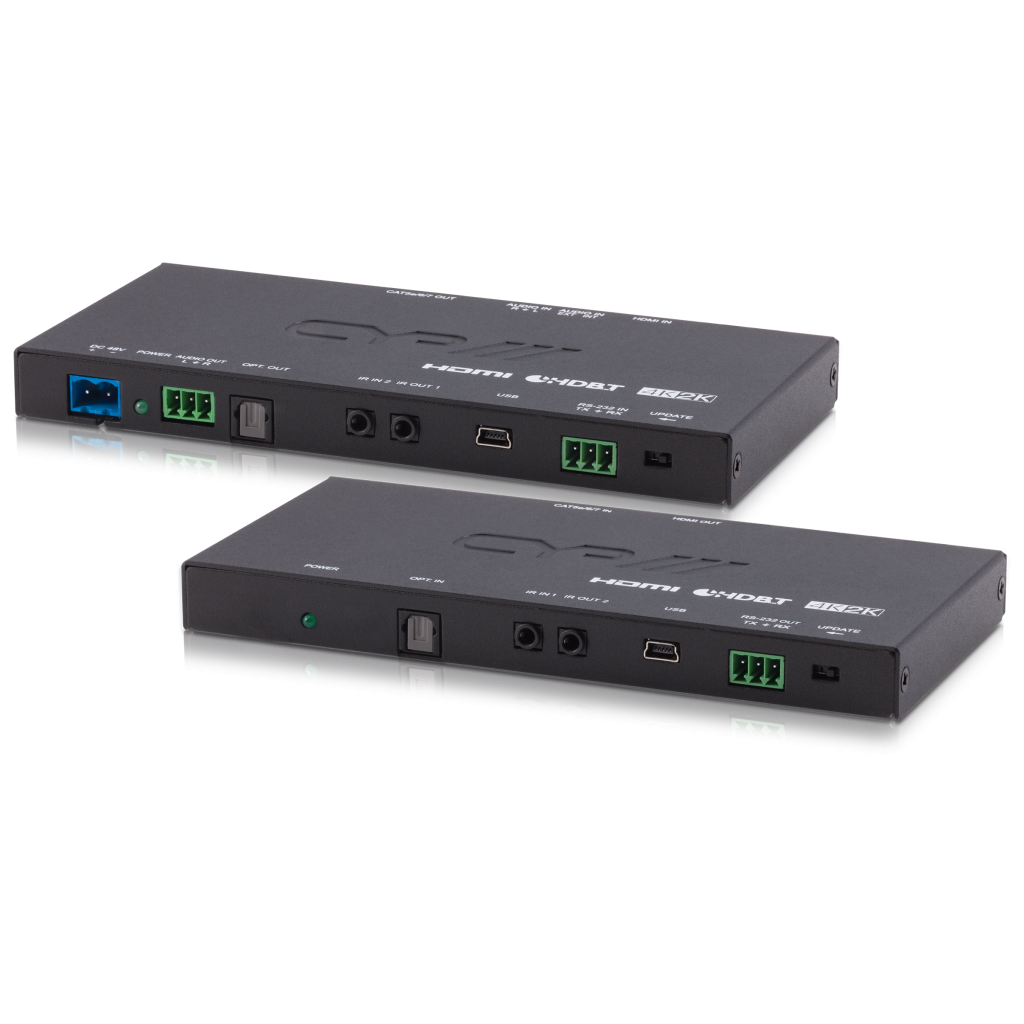

PUV-1230PL-KIT – HDBaseT1 LITE KIT with OAR & PoH

$29.16 $38.2
HDCP2.2 Compliant High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Optical Audio Return (OAR) system Supports HDCP repeating and CEC functions Inputs 1x HDMI [1x TX HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x TX Infra Red Receiver]1x Phoenix (3 pin) [1x TX RS-232]1x RJ45 [1x RX HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x RX Infra Red Receiver]1x Toslink [1x RX Dolby Digital / DTS / 2 Channel LPCM] Outputs 1x HDMI [1x RX HDMI Uncompressed AV and Data]1x Phoenix (3 pin) [1x RX RS-232]1x 3.5mm Stereo mini-jack [1x RX Infra Red Emitter]1x RJ45 [1x TX HDMI & Propriety Data]1x Toslink [1x TX Dolby Digital / DTS / 2 Channel LPCM]1x Phoenix (3 pin) [1x TX Stereo (L/R) Audio Output]1x 3.5mm Stereo mini-jack [1x TX Infra Red Emitter] POE PSU PoH PSU 48V/0.83A Dimensions 163mm [W] x 16mm [H] x 78mm [D] Net Weight 400g Gross Weight 1.68kg Product Stock Category Core Product
