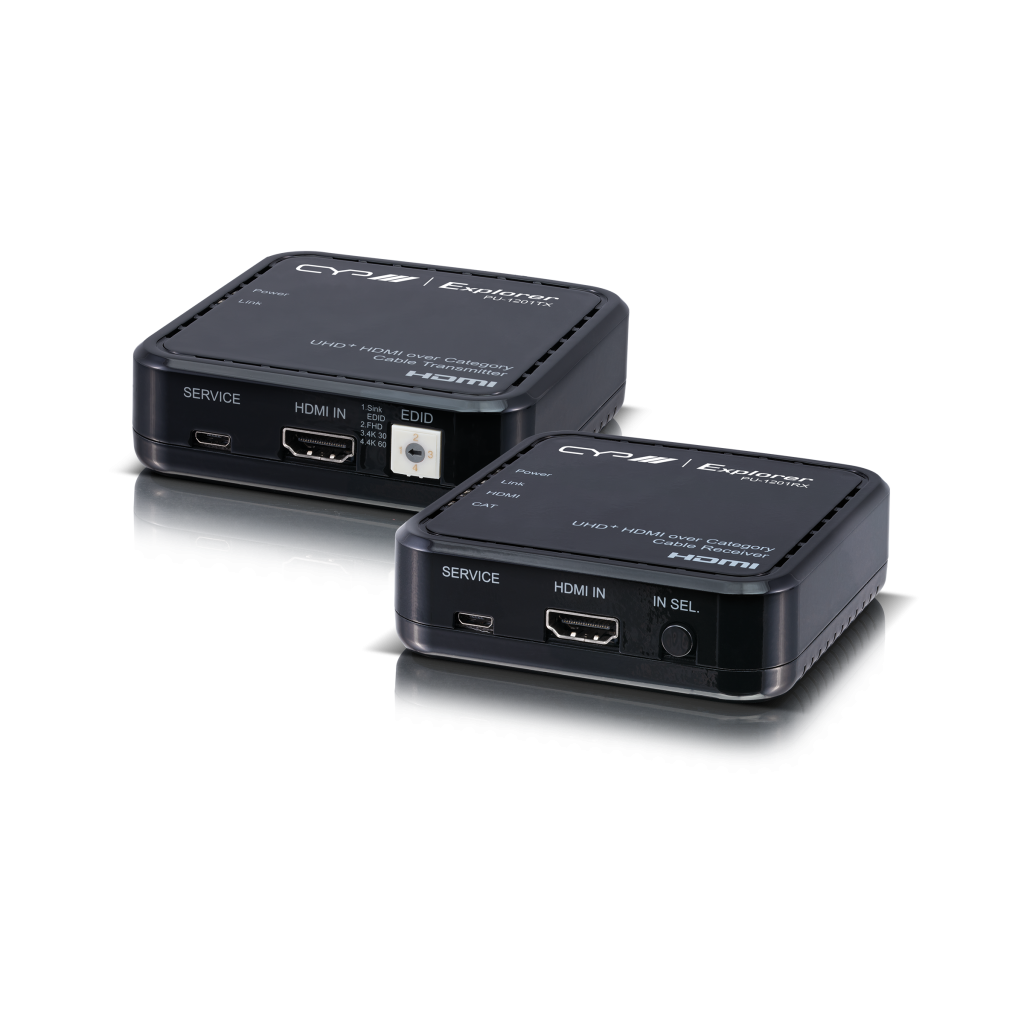

PU-1201-KIT – Full 4K HDMI over CAT extender kit with local HDMI bypass and RX input

HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant TX: 1 x HDMI input, 1 x CAT.6 output, 1 x HDMI bypass output RX: 1 x HDMI output, 1 x CAT.6 input, 1 x local HDMI input Supports HDMI input and CAT.6 output resolutions up to 4K@60Hz (4:4:4, 8-bit) CAT.6a/7 extension can reach up to 60m (197ft) CAT.5e/6 extendion can reach up to 40m (131ft) Supports extension of many audio formats including LPCM (up to 8 channels) and standard Bitstream Basic EDID management with 3 built in EDIDs and an EDID bypass option Top panel LEDs indicate link state, power & additional on the RX input selected LED Unit is a PoC (PSE) device and can provide power to a connected compatible receiver EDID can switch among 4 modes: Sink EDID, FHD, UHD, and UHD Inputs 1x HDMI [1x TX: HDMI Uncompressed AV and Data]1x RJ45 [1x RX: Extender CAT in HDMI & Propriety Data]1x HDMI [1x RX: local HDMI in Uncompressed AV and Data]1x USB Micro [1x Service Port Propriety Data] Outputs 1x HDMI [1x RX: HDMI Uncompressed AV and Data]1x HDMI [1x TX: HDMI Uncompressed AV and Data]1x RJ45 [1x TX: Extender CAT out HDMI & Propriety Data] POE PSU PoC PSU 12V/3A Dimensions 85mm [W] x 26mm [H] x 85mm [D] per Unit. Net Weight 180g Gross Weight 720g Product Stock Category Core Product
