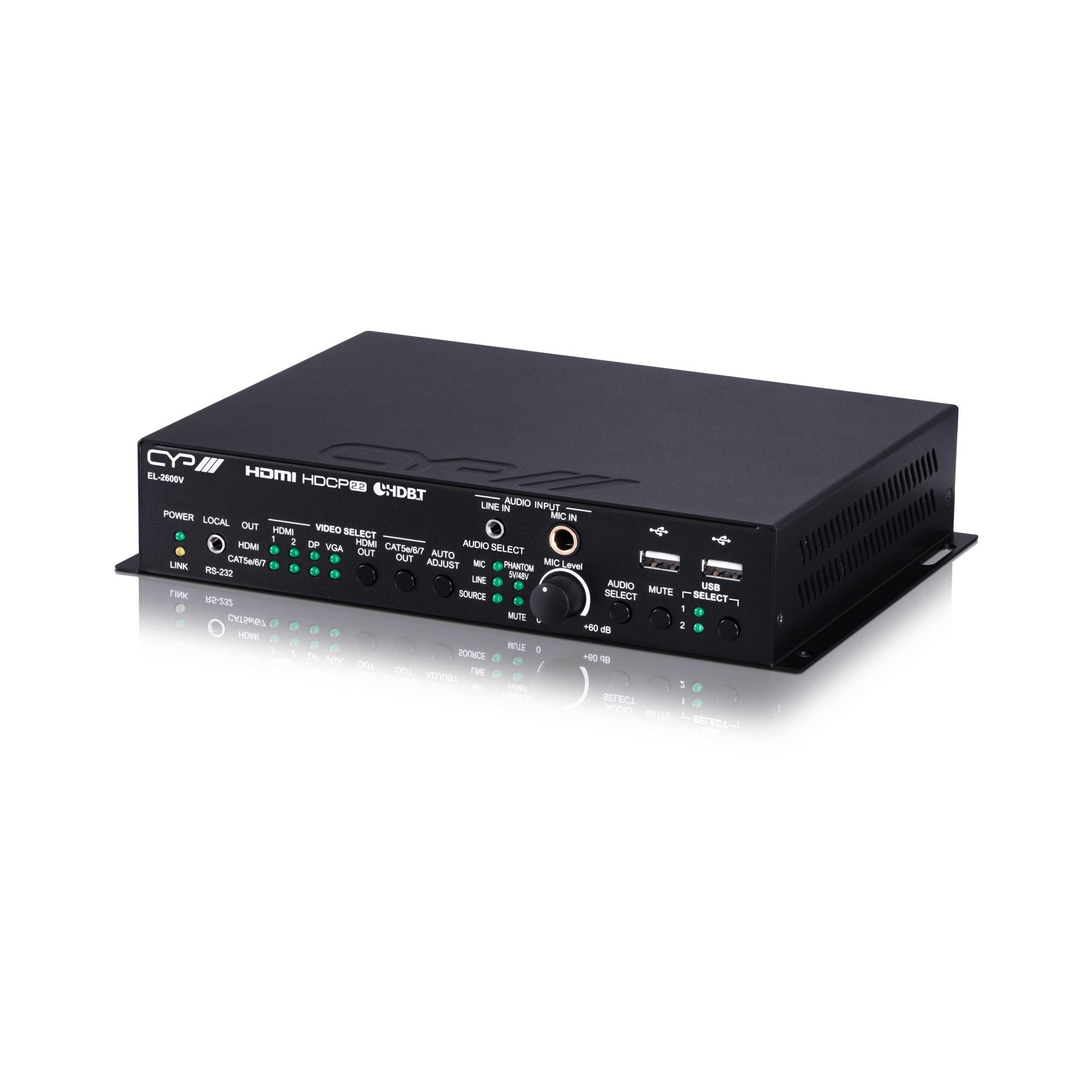

EL-2600V – HDBaseT2 Multi-Format Matrix Transmitter with USB for the Reverse Power PUV-2600 Series

HDMI and DisplayPort with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible HDCP 1.x & 2.2 compliant Selectable HDMI, DisplayPort, and VGA inputs HDMI and DisplayPort support input resolutions up to 4K@60Hz (4:4:4, 8-bit) VGA supports input resolutions up to 1080p/WUXGA (RB) HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit) HDBaseT output supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) with automatic colour space conversion of 4K@60Hz (4:4:4, 8-bit) sources 4×2 matrix switching (HDMI and HDBaseT outputs are independent) Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through) Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats Balanced analogue stereo audio breakout Microphone input supports optional 48V/5V phantom power Microphone input feeds into a DSP mixer allowing adjustable mix level controls Flexible USB host selection using front panel buttons Multiple USB hosts may be connected at once (up to 3 total, between the TX and a compatible Rx unit) with a single selected host active at a time Supports extended keypad (trigger) control for easy, single button, macro activation (optional equipment required) Supports local power, or power via 48V PoH from Receiver (Not Included) to Transmitter (compatible receivers only) Controllable via front panel buttons, Web GUI, Telnet, Triggers, and RS-232 Inputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x 15pin Dsub [1x VGA RGBHV]2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]1x Phoenix (10 pin) [1x Trigger In (8)]1x RJ45 [1x LAN Serving]2x USB Type B [2x Propriety Data]1x 3.5mm Stereo mini-jack [1x RS-232]1x Phoenix (3 pin) [1x RS-232]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 6.35mm Stereo Jack [1x Microphone] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]3x USB Type A [3x Propriety Data] POE PSU PoH PSU 24V/3.75A Dimensions  231.5mm [W] x 44mm [H] x 158mm [D]  Net Weight  1.2kg Gross Weight  1.64kg Product Stock Category Core Product
