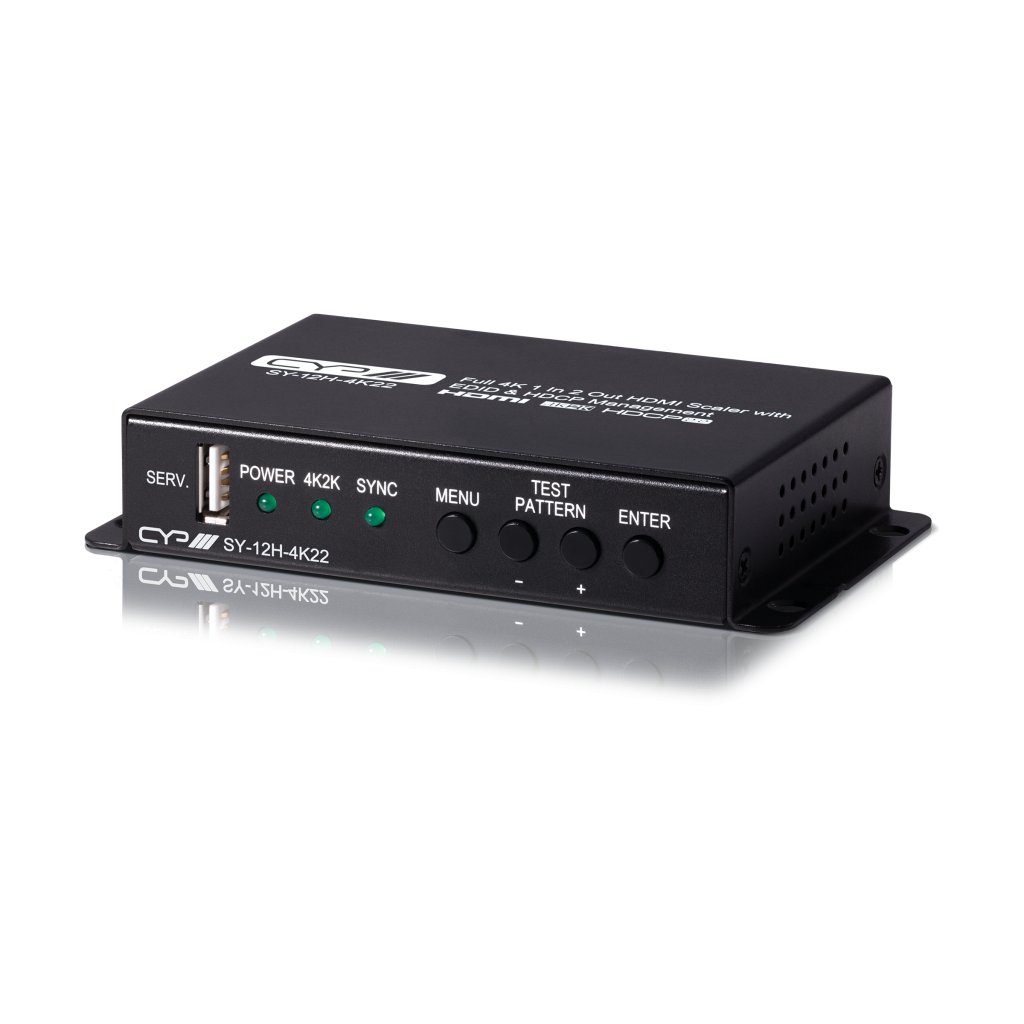

SY-12H-4K22 – Full 4K 1 in 2 out HDMI Scaler with EDID & HDCP management

HDMI input and output with 18Gbps (600MHz) 4K UHD with HDR support DVI 1.0 compliant with the use of an HDMI-DVI adapter HDCP 2.2 Compliant 1 x HDMI input and 2 x HDMI outputs Supports HDCP 2.2 to HDCP1.4 conversion HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with up to 12- bit colour Supports 16-bit Deep Colour up to 1080p@60Hz Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream Supports colour space conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources Integrated EDID and HDCP management Basic signal event automation (via RS-232 or CEC) Test pattern generation at selected resolutions for on-site display testing Front Panel Controls with OSD, and RS-232 Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x USB Type A [1x Service and comms port Propriety Data]1x Phoenix (3 pin) [1x RS-232] Outputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x Phoenix (3 pin) [1x RS-232] PSU 5V/2.6A Dimensions  128mm [W] x 25mm [H] x 75mm [D]  Net Weight  280g Gross Weight  660g Product Stock Category Core Product
