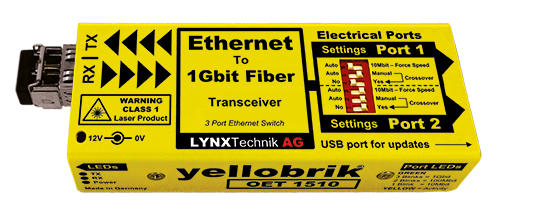

Beskrivelse Lynx OET 1510 Ethernet to Fiber Transceiver (Switch) Lynx OET 1510 Ethernet to Fiber Transceiver (Switch), nøkkelegenskaper: Supports standard Ethernet inputs up to 1 Gbit 3 port Ethernet switch (1 fiber, 2 electrical) Auto (10/100/1000) electrical port speed detection Manually force 10Mbit electrical speed (if needed) Fiber transceiver speed always 1 Gbit Auto or manual electrical crossover selection Singlemode fiber 1310nm up to 10km (6.2 miles) Multimode fiber 850nm up to 550m (1,804 feet) Duplex LC optical connections Supports hot swapping and hot pluggin The OET 1510 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed. When paired with another OET 1510 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit error free optical connection between locations. The OET 1510 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use; each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch. Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: LYNX Technik AG Kontakt oss gjerne for spørsmål om våre produkter. Vi hjelper deg med å velge de rette tekniske løsningene for din bedrifts behov. Du kan kontakte vårt salgsteam direkte ved å sende e-post til
