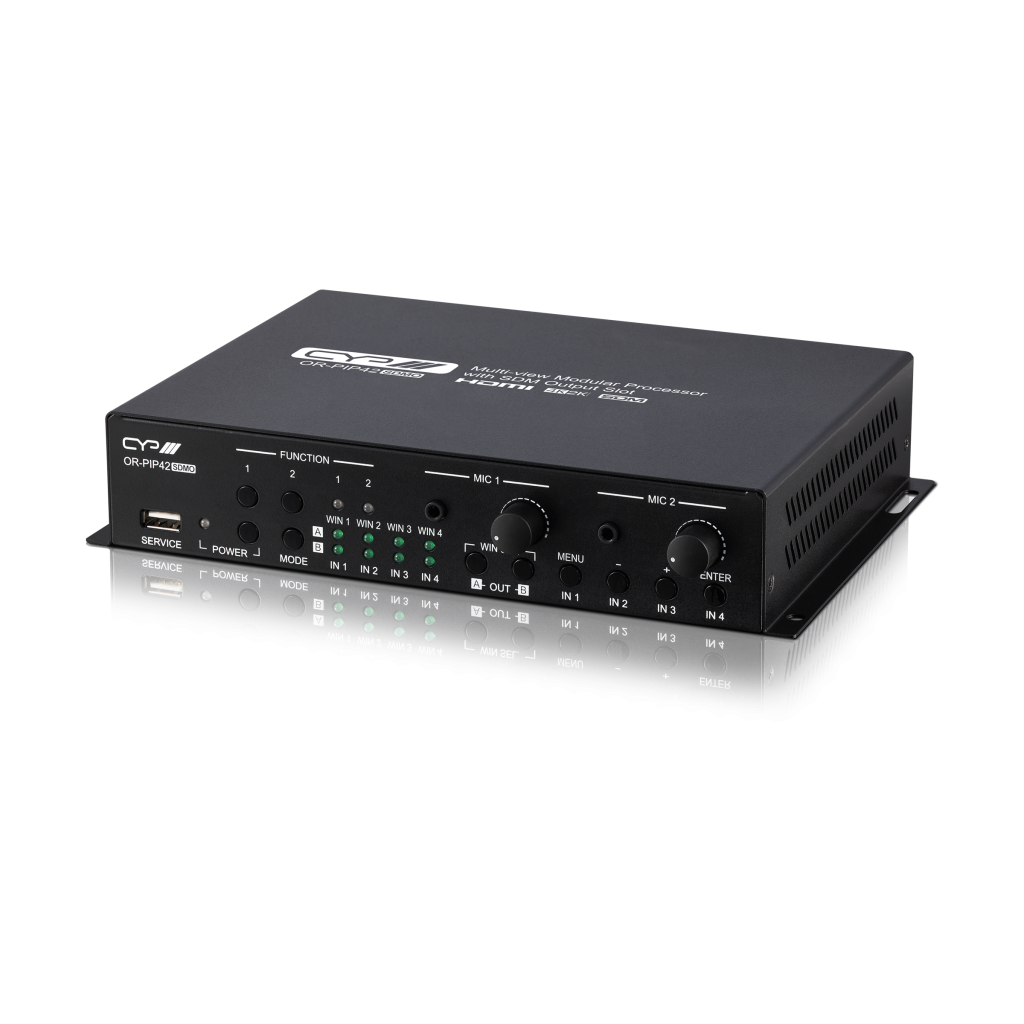

OR-PIP42SDMO – Multi-view Modular Processor with SDM Output Slot

HDMI 2.0 and HDCP 1.x; 2.2 compatible Serves as a core platform to couple with CYP SDM modular solutions for multiple ProAV system integration scenarios Core SDM product; enable with a Output based SDM slot HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection Supports the ability to store a multi-window arrangement as a preset that can be recalled later Audio mixer enabling mixing of HDMI, analogue and microphone audio signals EDID management Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI Controllable via front panel buttons, WebGUI, Telnet, RS-232 Inputs 4x HDMI [4x HDMI Uncompressed AV and Data]2x 3.5mm Stereo mini-jack [2x Microphone]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x Phoenix (3 pin) [1x RS-232]1x RJ45 [1x Control Propriety Data] Outputs 2x HDMI [2x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Headphone]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] PSU 24V/2.7A Dimensions 231.5mm [W] x 44mm [H] x 158mm [D] Net Weight 1.24kg Gross Weight 2.56kg Product Stock Category Core Product
