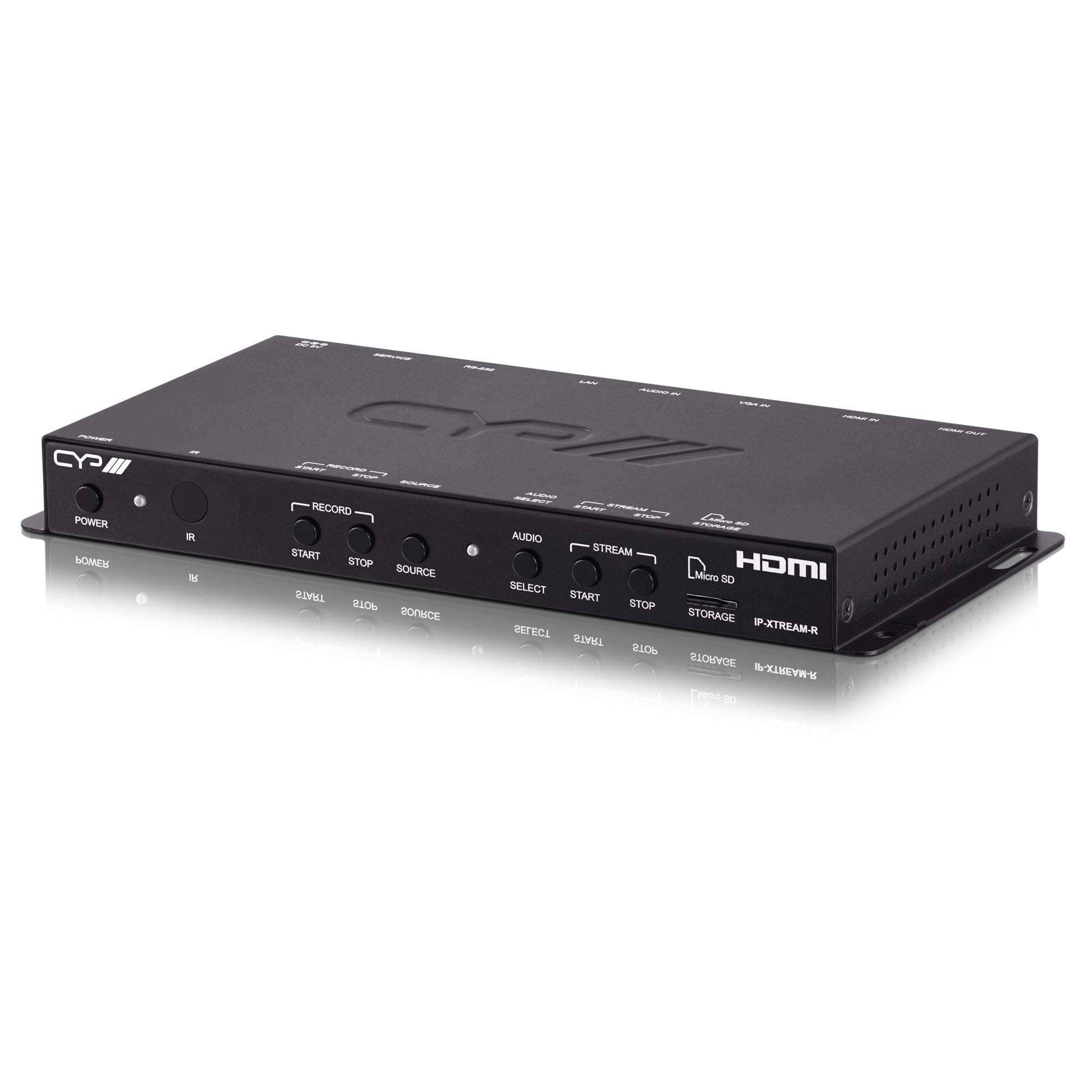

IP-XTREAM-R – Stand alone streaming and recording system with HDMI/VGA in & HDMI monitor out

1 HDMI input ,1 VGA input and 1 HDMI output (for local monitoring) are supported HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the internet and will be blacked out HDMI input/output supports resolutions up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) VGA input supports resolutions up to WUXGA (1920×1200@60Hz) Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps Recorded video can be stored on the locally inserted SD card, USB storage, or to a designated network drive supporting file system FAT32, EXFAT, NFS, and CIFS Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol) Audio embedding and mixing support with the analogue stereo audio input Note: analogue audio can only be mixed with LPCM 2.0 audio from the HDMI source.  Integrated support for live streaming to Facebook, YouTube or Twitch channels  On screen countdown timer and text overlays are supported automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets Advanced EDID management including Internal , External & User configured EDID selections Control via front panel buttons, Web GUI, Telnet, RS-232, and IR Inputs  1x HDMI [1x HDMI Input Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Unbalanced Stereo Stereo(L/R)]1x 9pin Dsub [1x Serial Port RS-232 Data]1x RJ45 [1x LAN Port LAN Serving]1x USB Type A [1x Service Port Propriety Data] Outputs  1x HDMI [1x HDMI Output Uncompressed AV and Data] PSU 5V/2.6A Dimensions  231.5mm [W] x 25mm [H] x 108mm [D] Net Weight  660g Gross Weight  1.2kg Product Stock Category Core Product
