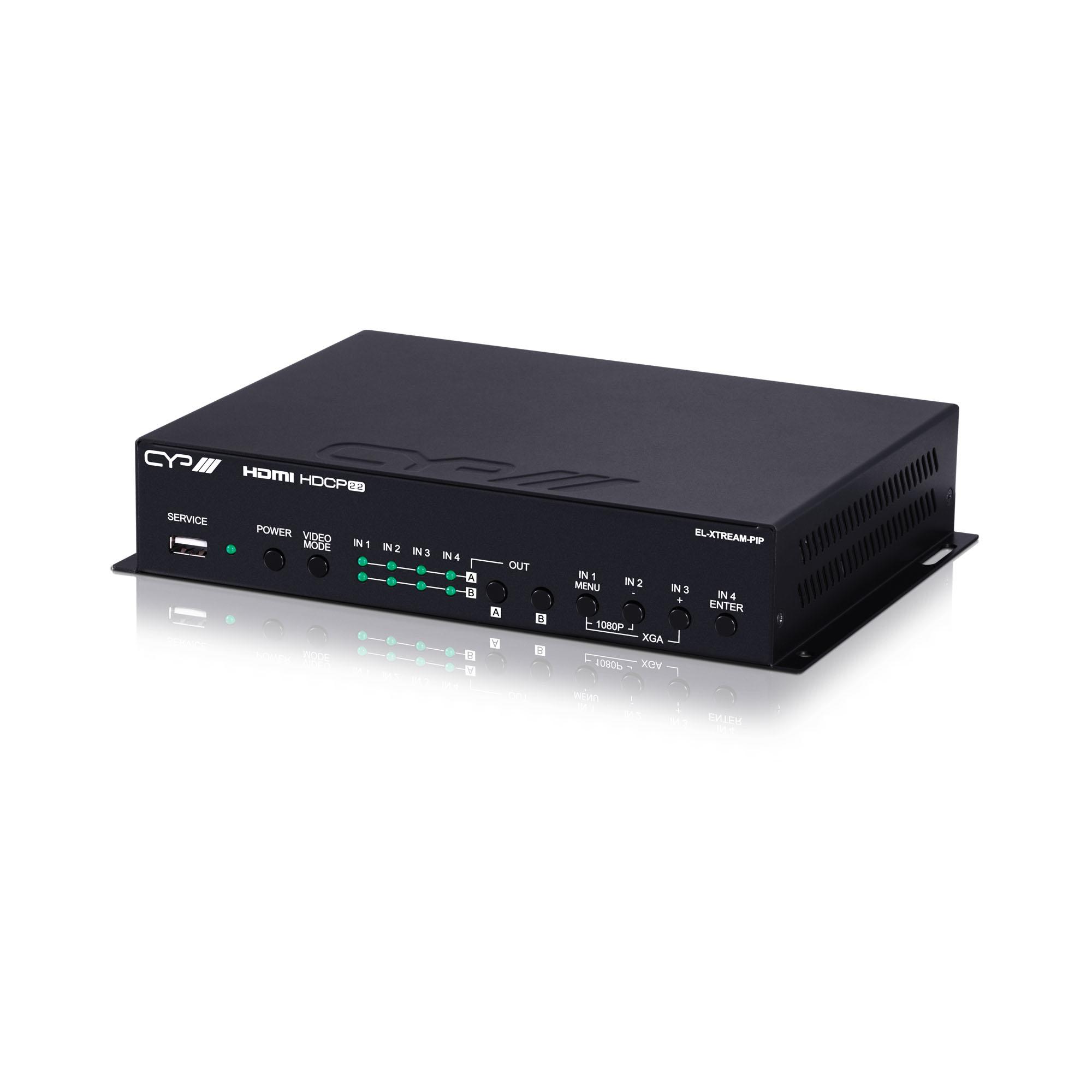

EL-XTREAM-PIP – 4×2 HDMI Switch with Integrated Multi-View & Video Capture

4 x 2 HDMI multi-viewer mode Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode. HDMI I/O full 4K 6G compatible with auto conversion for USB capture  Supports video timing stabilization to help ensure a reliable and stable USB capture stream Capturing over USB 3.0 allows uncompressed video and audio data capture (1080p, LPCM 2.0) Supports Custom Size, Position and Settings of Connected Sources in PIP Window Mode Supports capture of 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analogue audio input (selectable via capture software) Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards Controllable via front panel buttons, Web GUI, Telnet, RS-232 and dedicated video capture software Inputs  4x HDMI [4x HDMI Uncompressed AV and Data]1x HDMI [1x HDMI capture Uncompressed AV and Data]1x USB 3 Type B [1x Host PC Power & Data]1x 3.5mm Stereo mini-jack [1x Analogue Stereo Stereo(L/R)]1x RJ45 [1x RS-232 Propriety Data]1x RJ45 [1x LAN control and Stream out Propriety Data] Outputs  3x HDMI [3x HDMI Uncompressed AV and Data] PSU 24V/2.7A Dimensions  231.5mm [W] x 43mm [H] x 158mm [D] Net Weight  1.18kg Gross Weight  2.32kg Product Stock Category Special Order
