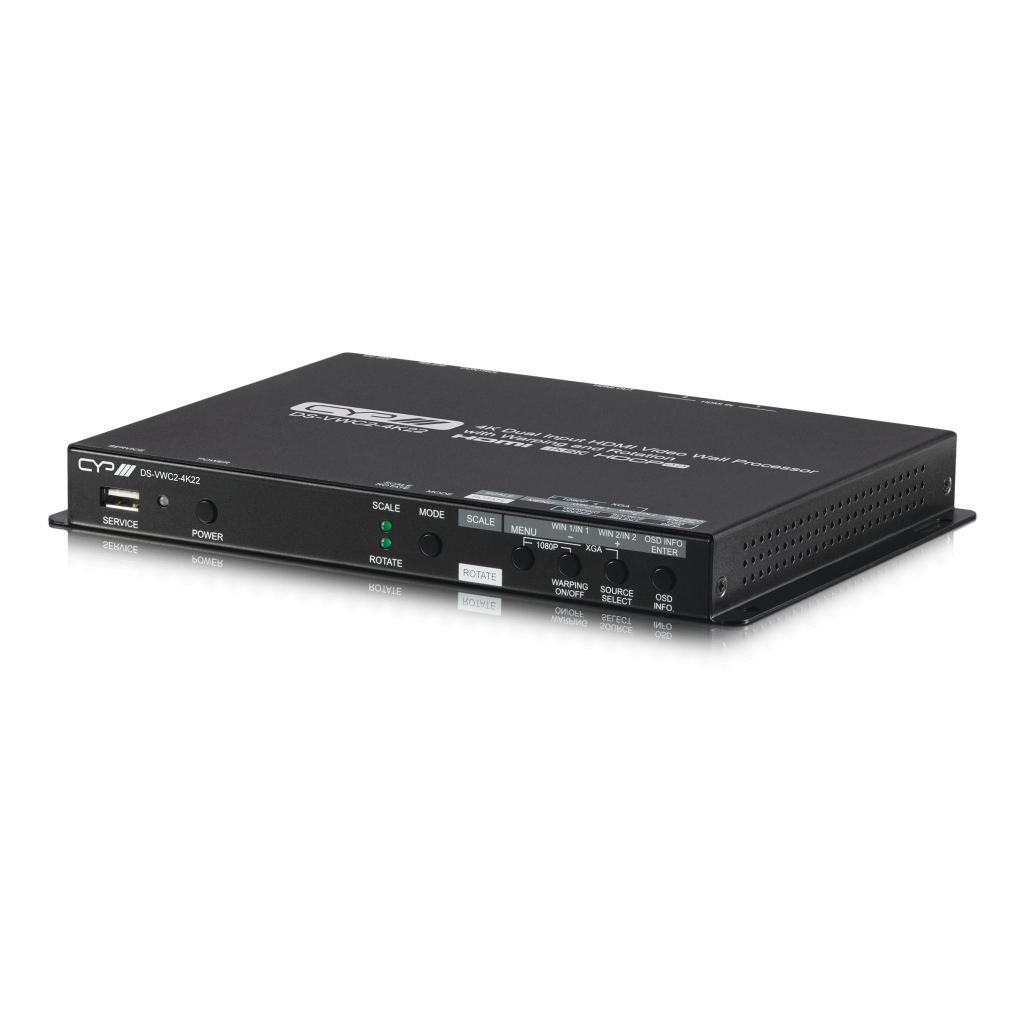

DS-VWC2-4K22 – 4K dual input HDMI Video Wall Processor with Warping and Rotation

HDMI 2.0 and DVI 1.0 compliant HDCP 1.x and 2.2 compliant 2 HDMI inputs and 1 HDMI output Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Only 1 to 2 frames of video latency Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1° increments (Warping mode) Supports up to two simultaneous, freely scalable, PiP windows in multiwindowing modes (Scaling mode) Seamless switching (no loss of sync to display) when switching sources with optional crossfade transition (Scaling mode) Each window can have a border with a selectable colour (Scaling mode) Per-input video cropping and chroma key overlay (Scaling mode) Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio Supports the ability to store a multi-window or warping arrangement as a preset that can be recalled later Independent audio source selection and routing in all modes Uploadable and freely positionable graphic logo support Per-input EDID management with internal or external EDID options Control of the unit is accomplished by use of front panel buttons with OSD menu, Telnet, RS-232 or dedicated Video Wall PC software Inputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x RS-232]1x RJ45 [1x IP Control]1x USB Type A [1x Service Port Propriety Data] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data] PSU 24V/2.7A Dimensions  231.5mm [W] x 25mm [H] x 158mm [D] Net Weight  980g  Gross Weight  2.06kg  Product Stock Category Special Order
