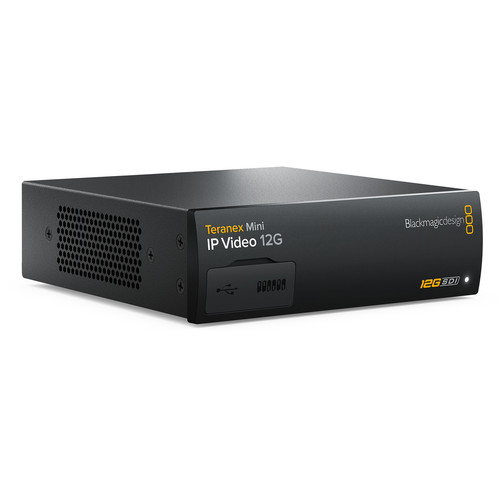

Beskrivelse Blackmagic Teranex Mini – IP Video 12G Connections SDI Video Inputs 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI SDI Video Outputs 2 x 10-bit HD-SDI, 6G-SDI and 12G-SDI Ethernet 3G-SDI up to 1080p60 using TICO encoding/decoding Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding Multi Rate Support Auto detection of HD-SDI, 6G-SDI or 12G-SDI Updates USB 2.0 high speed (480Mb/s) interface or via Ethernet Configuration Ethernet or USB 2.0 for firmware updates and IP address setting Reclocking On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video Standards HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 23.98p ,4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601 SDI Video Rates SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI SDI Video Sampling 4:2:2 plus 4:4:4 up to 4K DCI 30p SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit SDI Colour Precision 10-bit 4:2:2 and 4:4:4 SDI Colour Space YUV or RGB for inputs, YUV for SDI outputs SDI Auto Switching Automatically selects between HD-SDI, 6G-SDI and 12G-SDI SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M Display Optional Teranex Mini Smart Panel with 1.5 inch LCD for menu settings. Software Software Control Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac OS X Internal Software Upgrade Via included updater application. Operating Systems Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10 Settings Control Control Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons Power Requirements Power Supply IEC power cable required. 90 – 240V AC input Power Fail Protection Settings preserved and restored instantly at power on Power over Ethernet Can be powered via 48V DC using PoE (power over Ethernet) Power Consumption 16 Watts Dimensions 14 x 17 x 4.4 cm (5.5 x 6.6 x 1.7 inches) Weight 0.58 kg (1.2 lbs) Environmental Specifications Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
