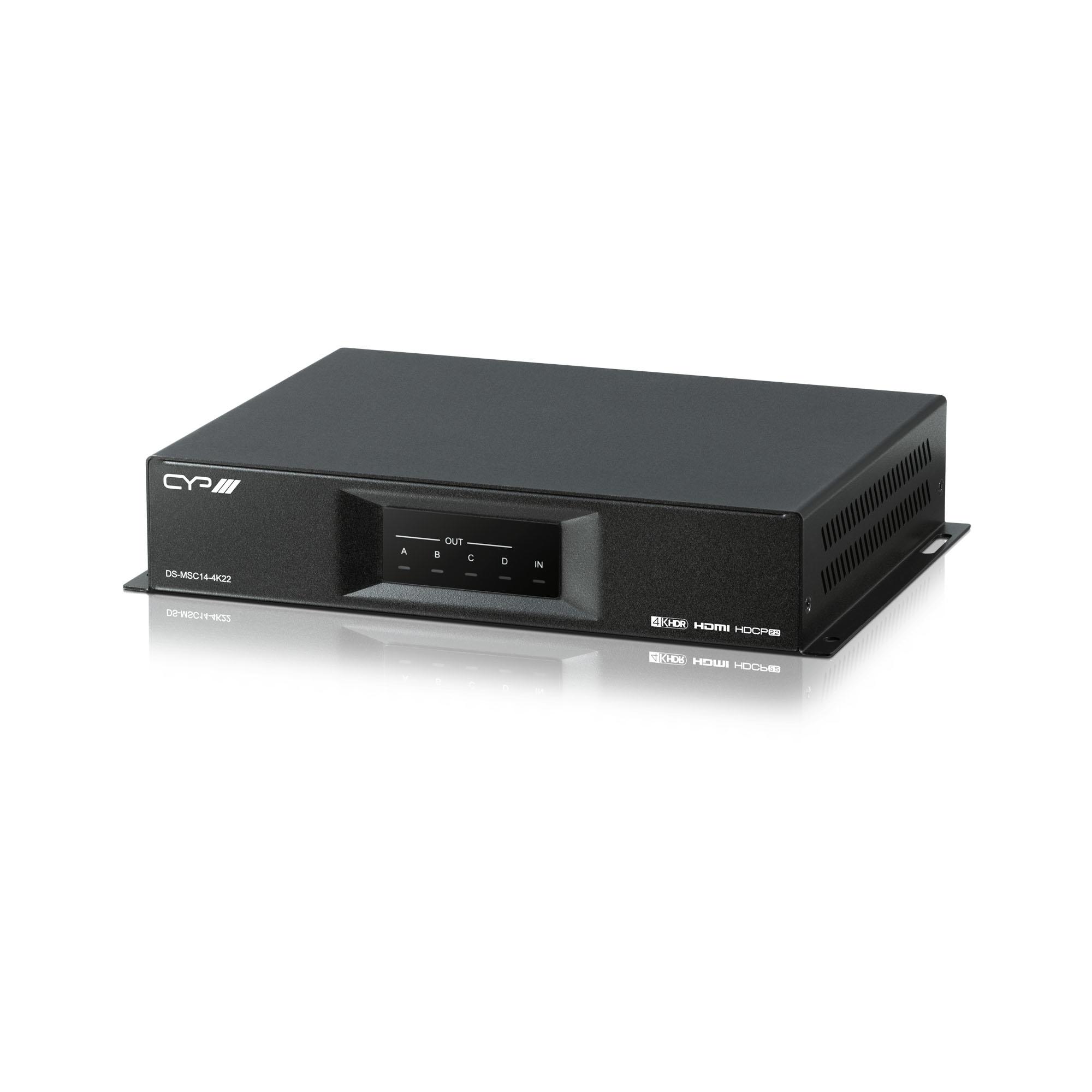

DS-MSC14-4K22 – 1×4 4K UHD Video Wall Controller
$22.31
$34.8
Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit) Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD Dedicated PC application for easy control of the unit The DS-MSC14-4K22 can be combined together using a HDMI splitter allowing the creation of larger video walls. The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our PC control software which can be found on the downloads tab of the website. Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts. HDMI 2.0, HDCP 2.2 and DVI compliant Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x IP Control]1x 9pin Dsub [1x RS-232 Data]1x USB Type A [1x Service Port Propriety Data] Outputs 4x HDMI [4x HDMI Uncompressed AV and Data] PSU 24V/1.25A Dimensions 231.5mm [W] x 44mm [H] x 158mm [D] Net Weight 1.02kg Gross Weight 1.62kg Product Stock Category Special Order
