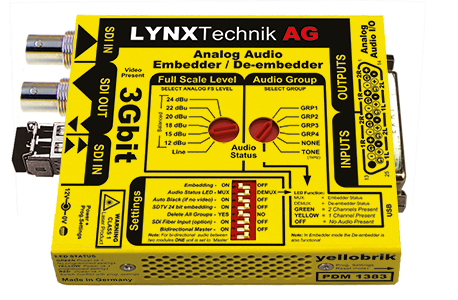

Beskrivelse Lynx PDM 1383 is a versatile analog audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. Analog audio I/O is connected using a 25 pin SubD connector. (screw terminal adapter provided). Audio groups are selected using the rotary switches, and its possible to embed and de-embed additional audio groups by cascading modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting with new audio (if required). The “auto black” mode uses a black video frame if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the module is being used in an “audio only” application. A 1 kHz test tone generator is included for audio testing purposes. Lynx PDM 1383 Features Simultaneous embedding and de-embedding 3G SDI Level A and Level B support SDI video formats up to 3Gbit (1080p60) 4 x Analog audio inputs / outputs with selectable audio groups Optional Fiber I/O Integrated 1 kHz test tone generator Bidirectional audio transport mode possible Auto black if no video present Selectable SDTV 24 bit mode Video and Audio present LED indicators yelloGUI compatible to access additional internal settings Kontakt oss gjerne for spørsmål om våre produkter. Vi hjelper deg med å velge de rette tekniske løsningene for din bedrifts behov. Du kan kontakte vårt salgsteam direkte ved å sende e-post til
