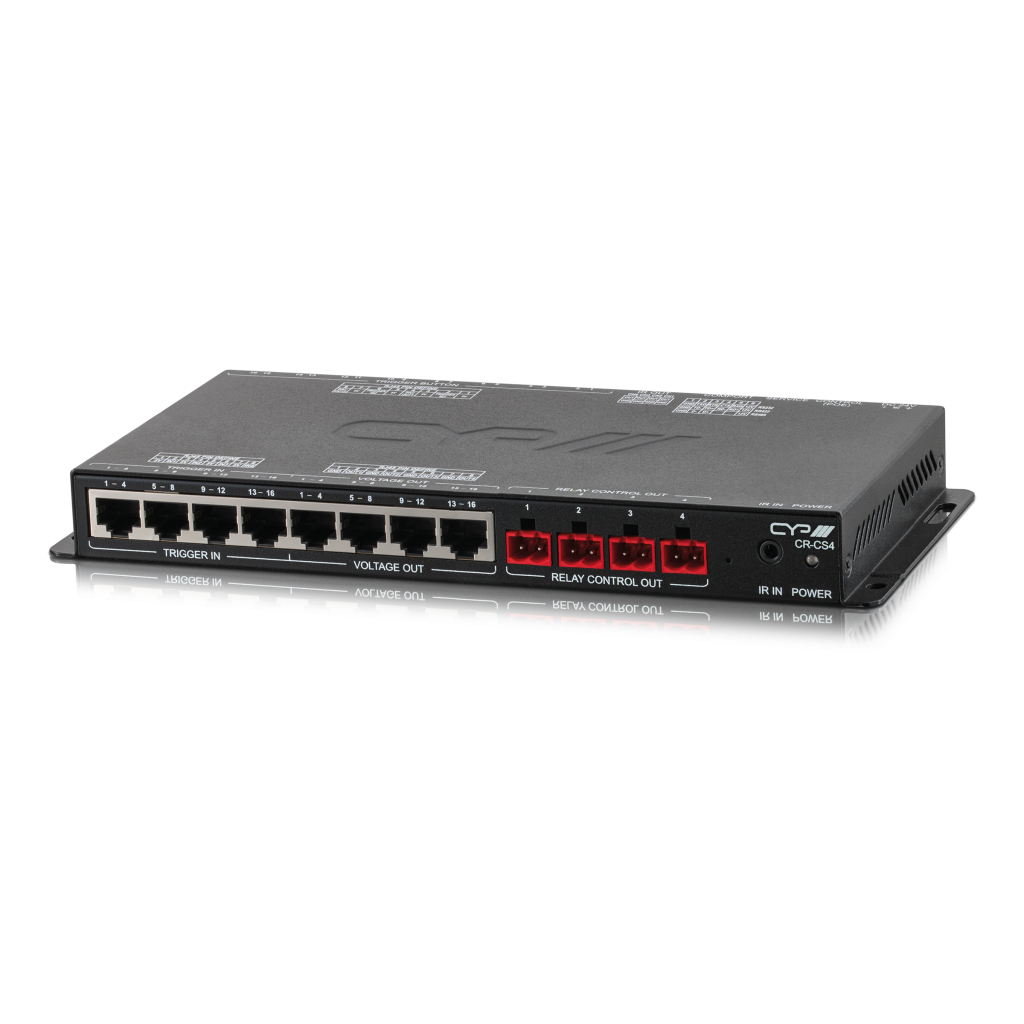

16 trigger inputs linked directly to 16 user macros allowing for instant control activation 16 additional macros (32 total) that can be activated via Ethernet, or on a defined schedule 4 power relays to control devices such as projector screens, lighting, etc 4 IR outputs to control devices such as TVs, media players, etc Integrated IR input for IR code learning functionality 2 serial ports for controlling RS-232/422/485 devices 16 variable voltage outputs for controlling low power devices (20mA total) or activating external triggers : Note: Trigger Buttons and Voltage Out ports cannot be used at the same time Battery backed up clock for scheduling events Can optionally be powered via PoE (802.3at Type 2) CR-CS4 is designed to be installed within our RAX-600 6U Rack Chassis or it can be mounted directly onto any flat surface Controllable via WebGUI, Telnet, and external triggers Inputs 1x 3.5mm Stereo mini-jack [1x IR Learning port Infra Red Receiver]1x RJ45 [1x Control & PoE port IP Control]1x USB Type A [1x Service Port Propriety Data]4x RJ45 [4x Trigger in (4)]8x RJ45 [8x Trigger Button Port (2)] Outputs 4x Phoenix (2 pin) [4x Contact Closure Relay Outputs]4x RJ45 [4x Voltage Outputs (4)]4x Phoenix (6 pin) [2x Com Ports]4x Phoenix (2 pin) [4x IR outs] POE PSU PoE PSU 24V/1A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 700g Gross Weight 1.36kg Product Stock Category Core Product
