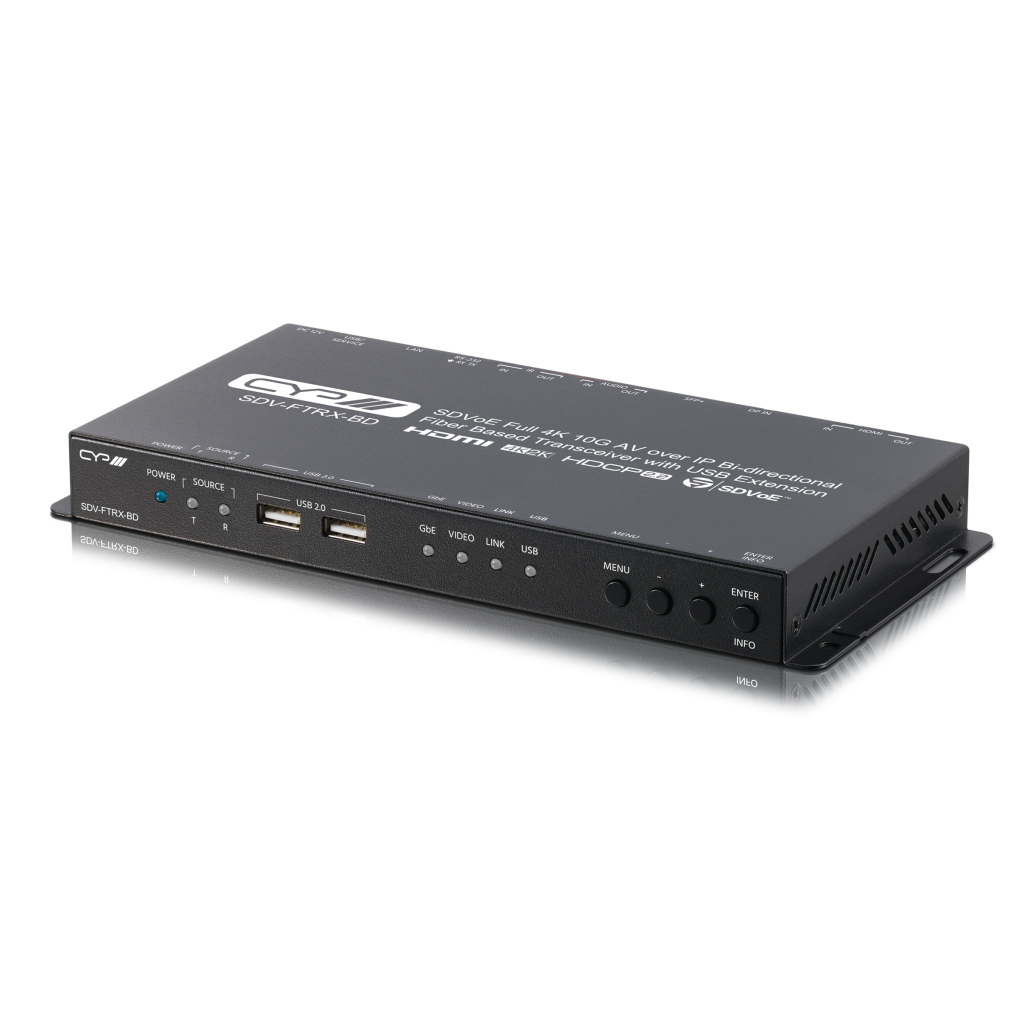

SDV-FTRX-BD – SDVoE Full 4K 10G AV over IP Bi-directional Fiber Based Transceiver with USB Extension…coming soon
$23.54
$42.37
HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant 1 HDMI and 1 DisplayPort input 1 HDMI output 1 analog stereo input & 1 analog stereo output 2 USB 2.0 (Type-A) ports and 1 USB 2.0 (Mini-B) port Transceiver supports simultaneous bi-directional AV signal extension IP switchable with minimum latency Ultra-light compression, lossless for most content Extension up to 30km (maximum distance depends on the SFP module and type of fiber used) Supports independent breakaway A/V matrix switching with minimal latency, video wall generation, and multiview compositing (requires SDV-CS8) Supports pass-through of 10/12-bit HDR sources Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI or DP sources Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller, the SDV-CS8) Bi-directional AV, IR, RS-232, USB 2.0, and Ethernet extension Supports a special Simultaneous Mode for USB extension allowing a host connected to a single transceiver to connect to up to 7 transceivers with USB devices connected (Mass storage devices are not supported in this mode. Requires optional IP Master Controller) Basic configuration via front panel buttons with an OS Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Display Port [1x Uncompressed AV]1x SFP [Shared simulaneous port - SDVoE fiber LC/PC-LC/PC Duplex MM OM3]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x RS-232]1x RJ45 [1x LAN Serving]1x USB Mini B [1x USB host & service port Propriety Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x SFP [Shared simulaneous port - SDVoE fiber LC/PC-LC/PC Duplex MM OM3]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 12V/3A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 700g Gross Weight 1.5kg Product Stock Category Core Product
