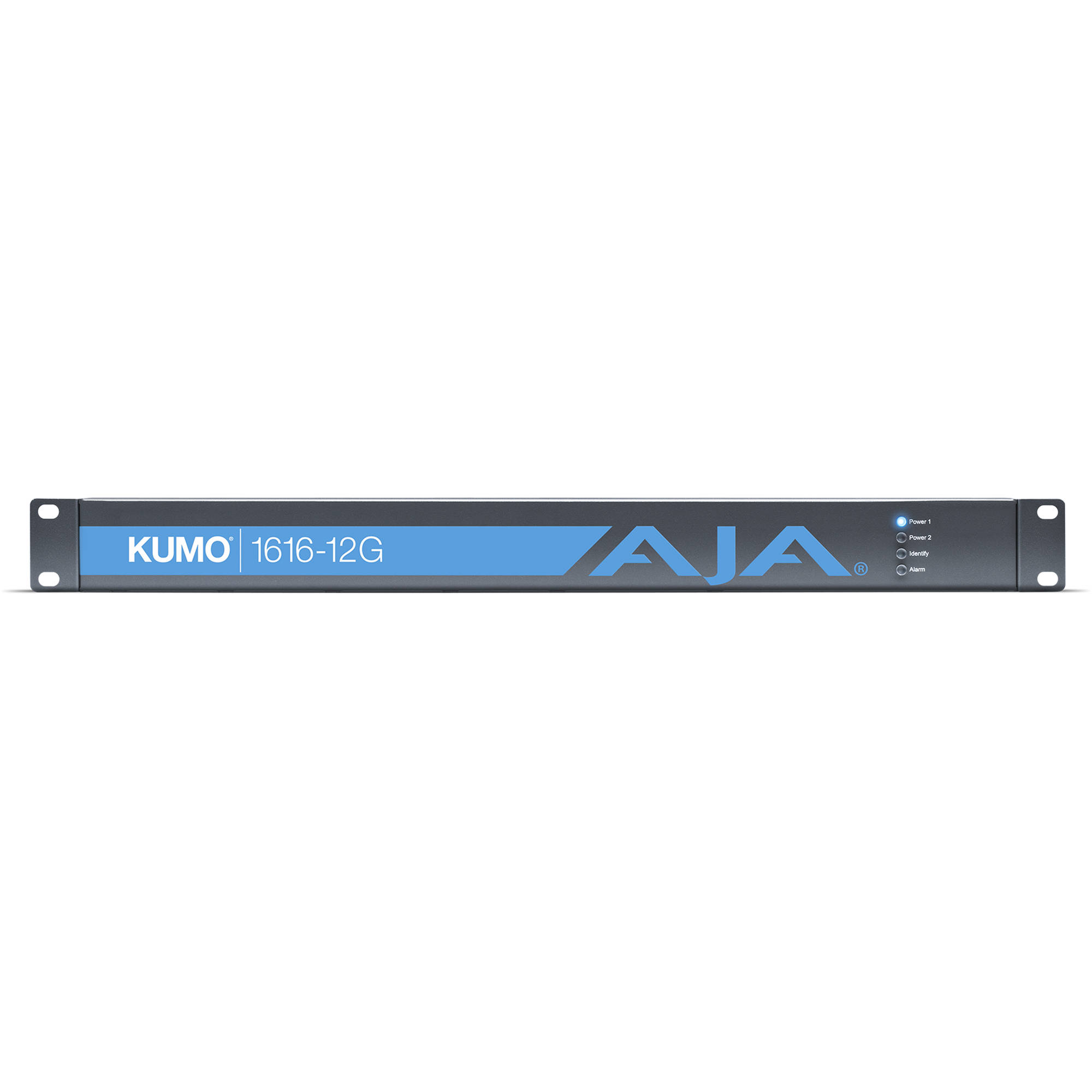

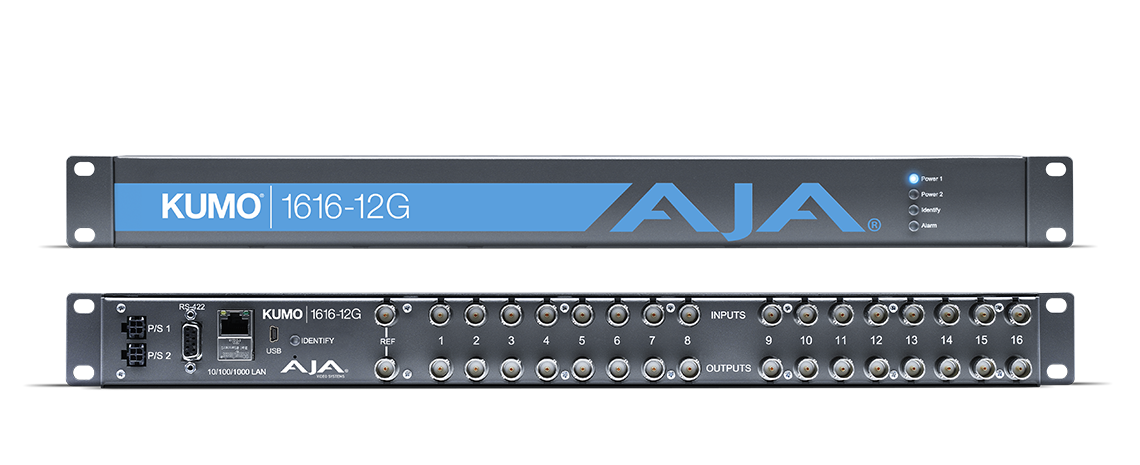

Beskrivelse AJA KUMO 1616-12G 16x 12G-SDI inputs and outputs Small, portable form factor Single cable support for 4K/UltraHD Redundant power supply option Eight salvos per router Embedded web server for remote control USB port to easily configure the router IP address 5 year warranty Video Format 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI 270 Mbps DVB-ASI Format agnostic, 125 Mbps – 12 Gbps Video Input Digital 12G-SDI Inputs 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 Video Output Digital 12G-SDI Outputs Noninverting 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 Ancillary Data Passes all SDI embedded ancillary data including audio Salvo Up to 8 Salvos can be configured and saved in each KUMO router Cable Equalization (Belden 1694A) 12 Gbps, up to 60m 6 Gbps, up to 120m 3 Gbps, up to 190m 1.5 Gbps, up to 195m 270 Mbps, up to 405m Automatic operation Reclocking 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select All other rates are passed through and not reclocked Switching Modes Single, Dual, and Quad Link modes Switches in vertical blanking per SMPTE RP-168 Control Panel Compatibility AJA KUMO CP – 1RU X-Y Ethernet control panel AJA KUMO CP2 – 2RU X-Y Ethernet control panel Reference Input External, 2x BNC Looping, nonterminating Blackburst or tri-level sync Network Interface 1x RJ-45, 10/100/1000 Ethernet Supports AJA KUMO Ethernet control panels, direct connect or networked Grass Valley Native Protocol Embedded web server for remote control Size (w x d x h) 1RU – 17.4″ x 1.54″ x 1.75″ (441.96 x 39.12 x 44.45 mm) Weight 1.4 lb (0.7 kg) Power 10-14VDC regulated, 13W typ, power supply required, included with purchase Specifications subject to change without notice. Features description and technical specification from AJA Kontakt oss gjerne for spørsmål om våre produkter. Vi hjelper deg med å velge de rette tekniske løsningene for din bedrifts behov. Du kan kontakte vårt salgsteam direkte ved å sende e-post til
