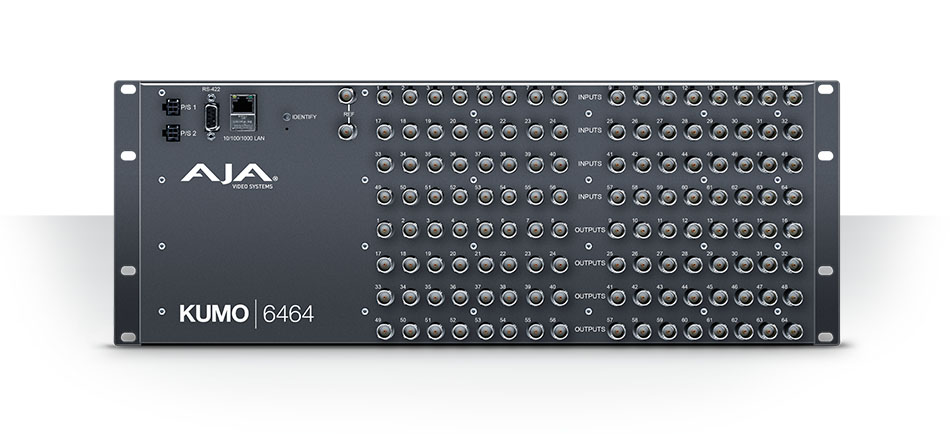

Beskrivelse AJA KUMO 64×64 Compact SDI Router with 1 Power Supply AJA KUMO 6464-ruteren har utrolige 64 innganger og 64 utganger med 3G-SDI-video og lyd, samtidig som den opprettholder en slank og kompakt 4RU-profil. Video Formats 3 Gbps SDI, 1.5 Gbps, 270 Mbps 270 Mbps DVB-ASI Format agnostic, 125 Mbps – 3 Gbps Video Input Digital 3G-SDI Inputs 64x BNC, SMPTE-259/292/424 Video Output Digital 3G-SDI Outputs Noninverting 64x BNC, SMPTE-259/292/424 Ancillary Data Passes all SDI embedded ancillary data including audio Salvo Up to 8 Salvos can be configured and saved in each KUMO router Cable Equalization (Belden 1694A) 3 Gbps, up to 140m 1.5 Gbps, up to 200m 270 Mbps, up to 400m Automatic operation Reclocking 270 Mbps, 1.483 Gbps, 1,485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select All other rates are passed through and not reclocked Switching Modes Single, Dual, and Quad Link modes Switches in vertical blanking per SMPTE RP-168 Control Panel Compatibility AJA KUMO CP (First 32 I/O in Normal, all I/O in Dual or Quad mode) – 1RU X-Y Ethernet control panel AJA KUMO CP2 (Single, Dual or Quad mode) – 2RU X-Y Ethernet control panel Reference Input External, 2x BNC Looping, nonterminating Blackburst or tri-level sync Network Interface 1x RJ-45, 10/100/1000 Ethernet Supports AJA KUMO Ethernet control panels, direct connect or networked Grass Valley Native Protocol Embedded web server for remote control Size (w x d x h) • 4RU – 17.4″ x 1.55″ x 7.00″ (441.96 x 39.37 x 177.8 mm) Weight • 9.2 lbs (4.2 kg) Power • 10-14 VDC regulated, 32W typ, 36W max, power supply required, included with purchase • AC Adapter: 100-240VAC, 50/60 Hz, universal input Environment • Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) Endringer i teknisk spesifikasjon kan forekomme. Teknisk spesifikasjon fra leverandør: AJA Kontakt oss gjerne for spørsmål om våre produkter. Vi hjelper deg med å velge de rette tekniske løsningene for din bedrifts behov. Du kan kontakte vårt salgsteam direkte ved å sende e-post til
