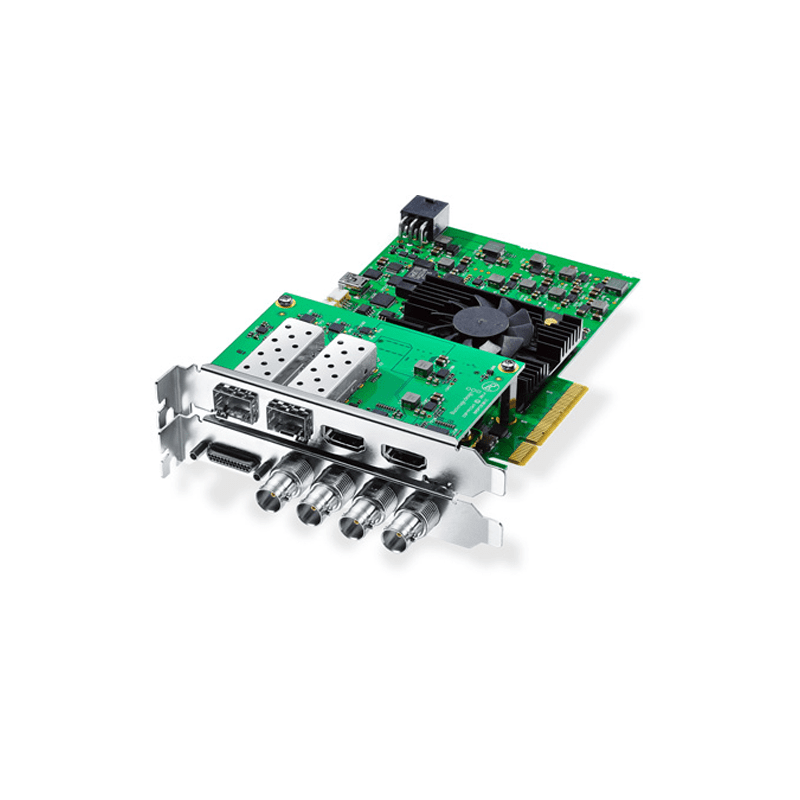

DeckLink 4K Extreme 12G Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G‑SDI! You get dual link multi rate 12G‑SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10‑bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections! Connections SDI Video Inputs 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Outputs 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. Analog Video Inputs 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD. Analog Video Outputs 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD. Analog Audio Inputs 2 Channels of professional balanced analog audio via XLR connectors. Analog Audio Outputs 2 Channels of professional balanced analog audio via XLR connectors. Optical Fiber Inputs/Outputs (Optional) 2 x 12Gb/s Optical Fiber. AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter. AES/EBU Audio Outputs 2 Channels unbalanced. SDI Audio Inputs 16 Channels embedded in SD/HD/2K/4K. SDI Audio Outputs 16 Channels embedded in SD/HD/2K/4K. HDMI Video Inputs HDMI type A connector with support for 2160p60. HDMI Video Outputs HDMI type A connector with support for 2160p60. HDMI Audio Inputs 8 Channels embedded in SD/HD/4K HDMI Audio Outputs 8 Channels embedded in SD/HD/4K. Sync Input Tri-Sync or Black Burst. Device Control Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control. Computer Interface PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card. Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third party applications and support may vary, check with your software vendor. Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI Digital Video Interface (DVI) Standards 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8‑bit RGB 4:4:4 in all DVI modes. Color Space REC 601, REC 709, REC 2020 HDMI Video Sampling 4:4:4, 4:2:2 and 4:2:0 HDMI Configuration HDMI 2.0b supports Deep Color and HDR. Multiple Rate Support HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Video
