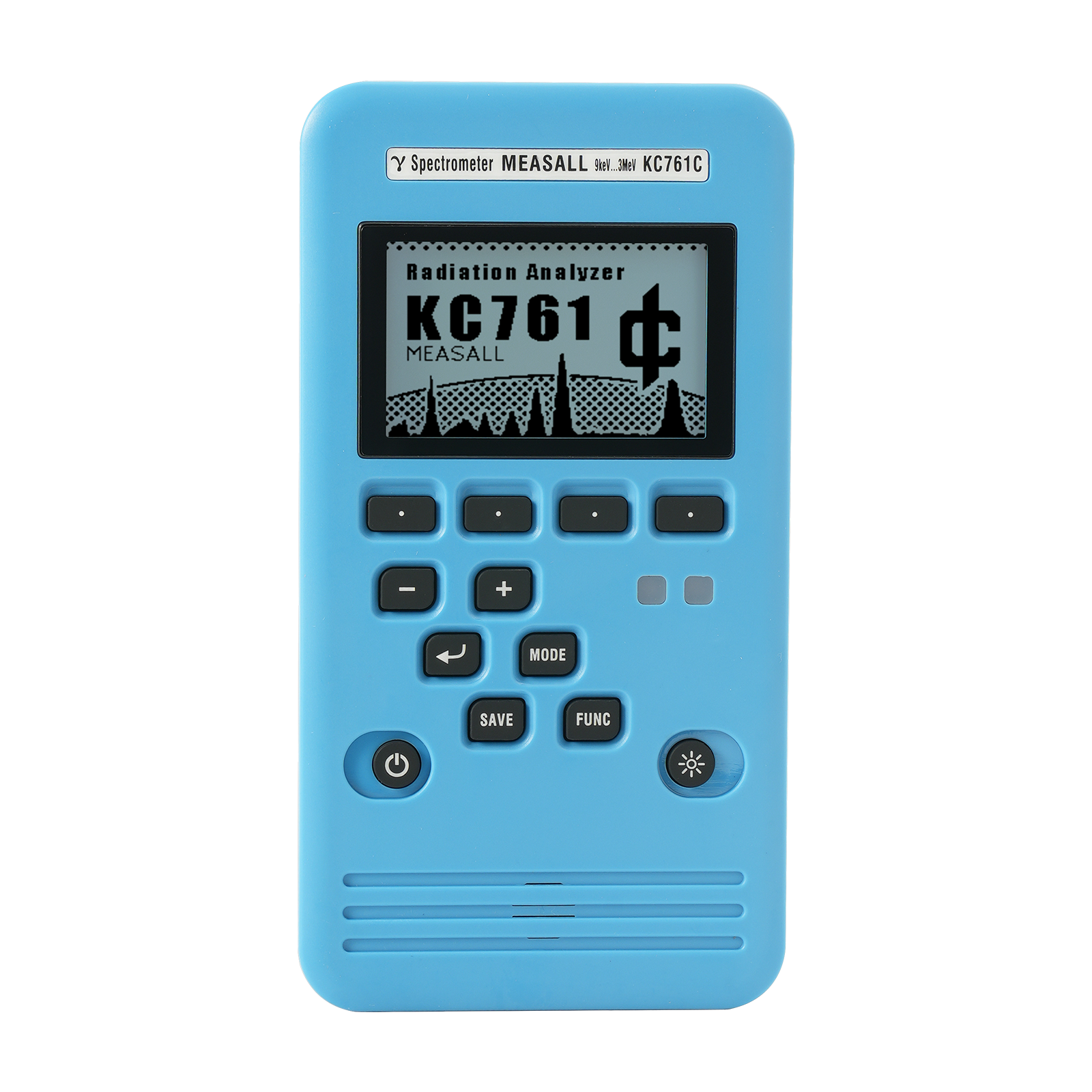

MEASALL Radiation Dosimeters and Gamma-Spectrometers KC761C

Product Introduction MEASALL Radiation Dosimeters and Gamma-Spectrometers KC761C Dual sensor radiation dosimeter and gamma spectrometer with high-resolution spectrum analysis, designed for field measurement, logging, and identification workflows. Dual sensor: CsI and PIN for gamma / beta / alpha measurement 6.2% /-0.3% FWHM resolution @662keV AA battery powered with NiMH charge ability Android and iOS App for smartphone Free Shipping Worldwide Product Highlights 6.2% /-0.3% FWHM resolution @662keV Extended low energy response to 9keV Sensitive 10cps/0.1μGyh-1 @662keV Low energy drift in working temperature range Long-term storage ability Product Features Primary sensor: CsI (2.54 cm³) scintillator SiPM Auxiliary sensor: PIN sensor (16 mm²) 3x AA/LR6 or 3x HRM6, up to 10 days continuous use USB Type-C and PoE power supply; Type-C supports charging Bluetooth RJ45 (PoE) microSD for data transfer Built-in display for spectrum and key data IP65 waterproof housing Product Functions Radiation measurement with multi-channel analyzer Dose display based on energy compensation Automatic radioactive isotope identification Product Data Table Key Specifications Energy Range Gamma/X: 9keV – 3MeV; Beta: 50keV – 4.5MeV; Alpha: 3MeV – 10MeV Resolution 6.2% /-0.3% FWHM @662keV (KC761C) Sensitivity 10cps/0.1μGyh-1 @662keV Gamma Dose Rate Range 30-500keV: 100 μGy/h; 0.5-1MeV: 200 μGy/h; 1-3MeV: 500 μGy/h Strong Radiation Alert 100 μGy/h – 100 mGy/h Detector Stack CsI (2.54 cm³) SiPM; PIN window 16 mm² Power 3x AA/LR6 or 3x HRM6; USB Type-C; PoE Interfaces Bluetooth, RJ45 (PoE), microSD, USB Type-C Protection IP65 waterproof Weight Approx. 300g Data is from the existing KC761C product description and technical specification info. User Manual KC761 User Manual (beta). Download PDF Apps Download Mobile apps for control, logging, and data review. What’s in the Package KC761C x1, short strap x1.
